Wiper Motor

(no previous image) | Back | (no next image)

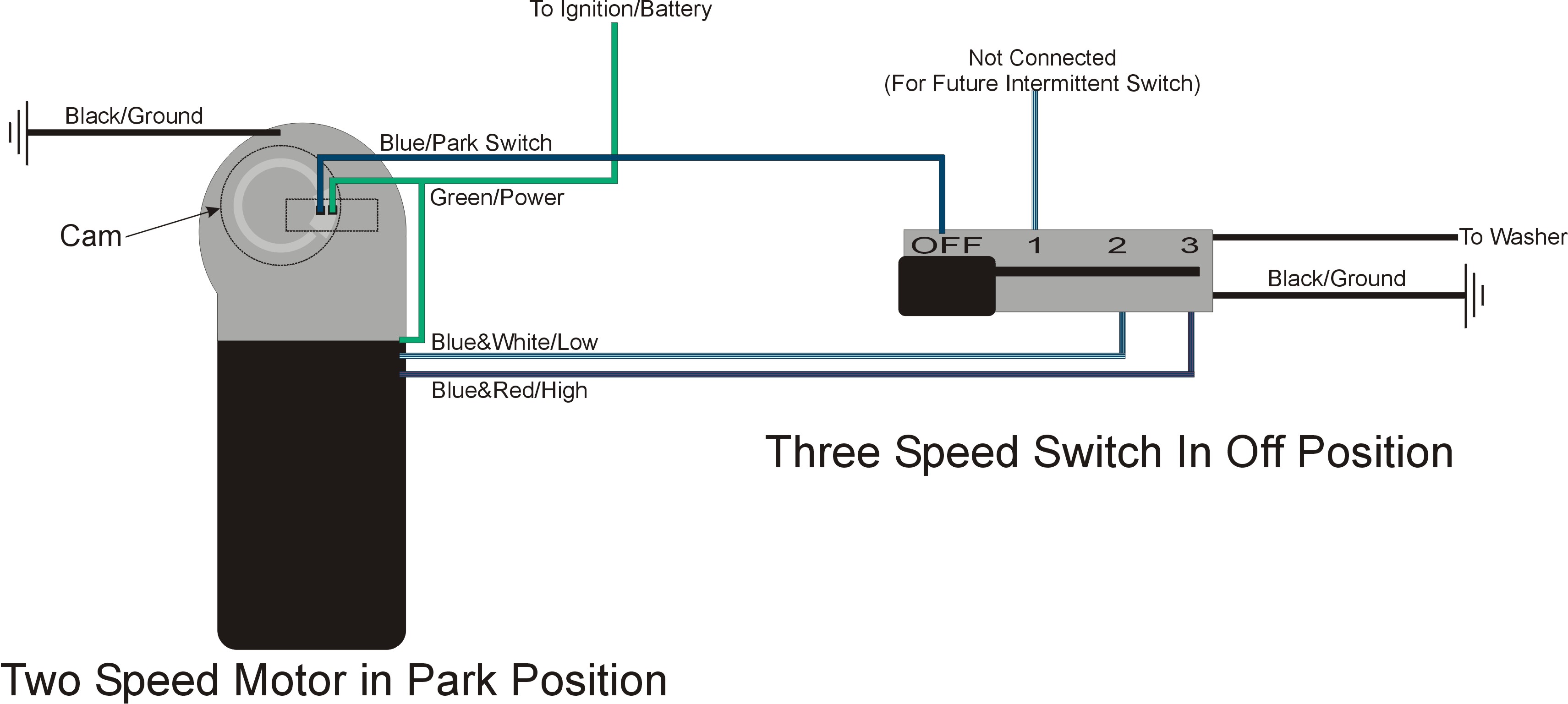

Marius Theron sent this image. It is the wiring diagram for a 2 speed wiper motor. Many thanks Marius!

The small images is hard to read, so click for a full size image.
