Rear Spring Plates

Previous image | Back | (no next image)

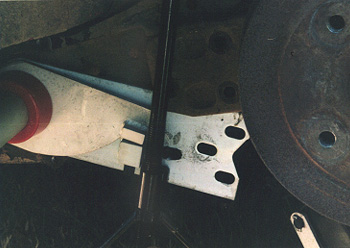

A little closer view with the spring plate behind the IRS trailing arm mounting flange. The spring plate is not yet above the lower stop. At this point the spring plate is kind of bending, and has to be forced upwards.
