Mounting Givi E21 hard case on a 1996 Honda Shadow VLX

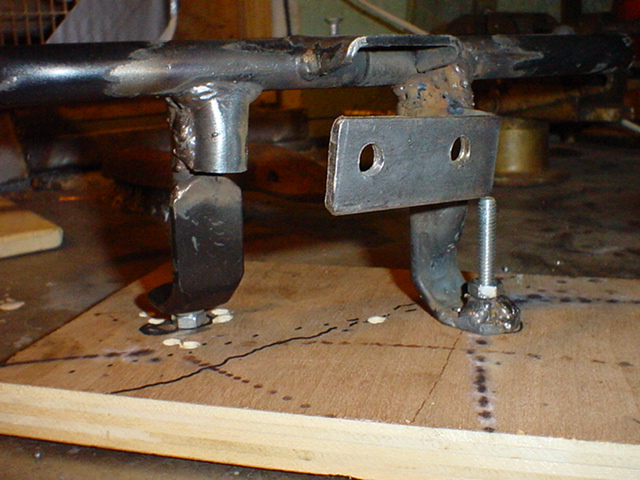

Another closeup of the jig with the Givi Monokey rack. There is a dotted guide line between the holes which is level on the motorcycle. The diagonal dotted brown spots are where weld spatter rolled across the plywood jig. Always keep a fire extinguisher handy.
Note that the rack is all finished up, including a nut welded onto the front (left in photo) mount. I put the rack back on the jig just for this photo.
