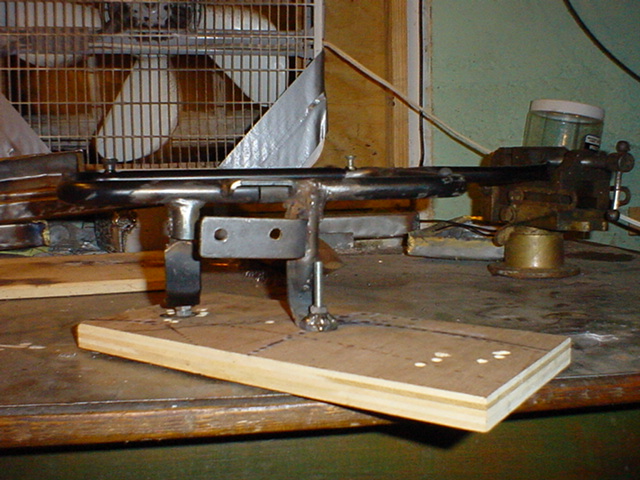

Side view of the jig. Note that the left mount which is the rear mount on the motorcycle is offset with two nuts underneath. Sadly, I put the nuts on the wrong side, and didn't check the rack on the motorcycle after the initial tack welds. Opps. It took 30 minutes to cut off the bad weld. This image is correct.
|
