Tom's BMW R850R: Defective Fuel Pump Connector

Previous image | Back | Next image

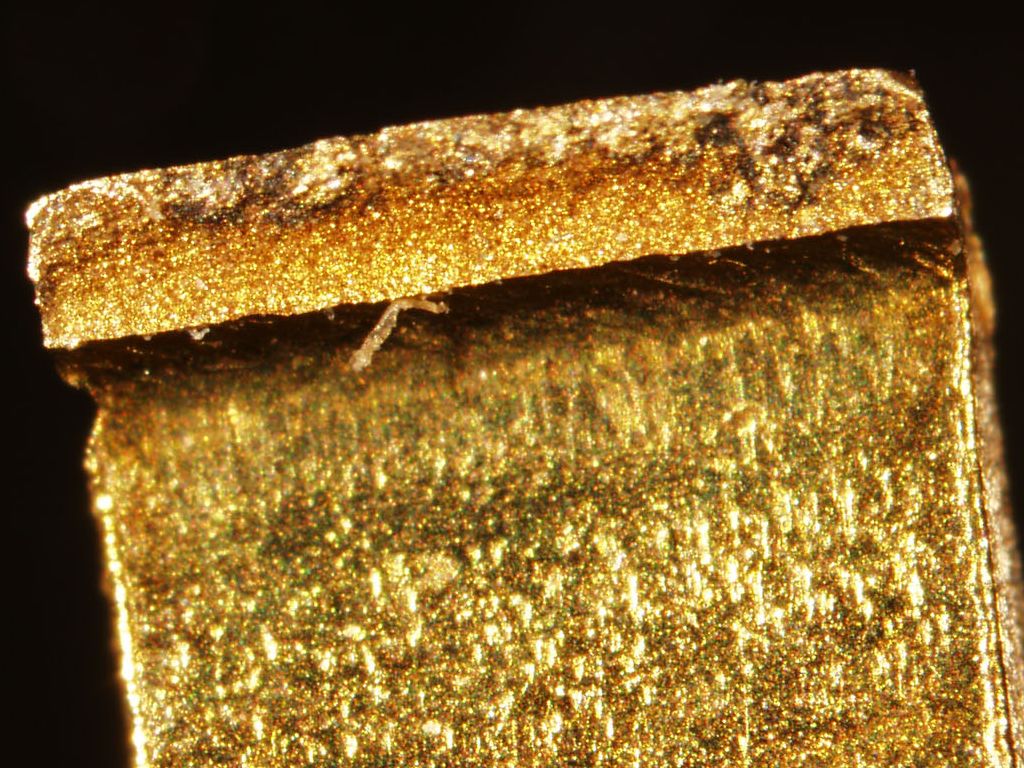

An extreme close up. Note that the upper face of the metal is several colors. I am supposing that the connector was only half intact. In this image I see a band of bright metal at the top and a band of darker metal along the bottom. Probably only one of these areas (the brighter area) was carrying all the electrical current to the fuel pump for 15 years.

Close up of a broken connector.
