These images are from a 1988 F-250 Custom, standard cab. The design is probably the same for 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995 and 1996.

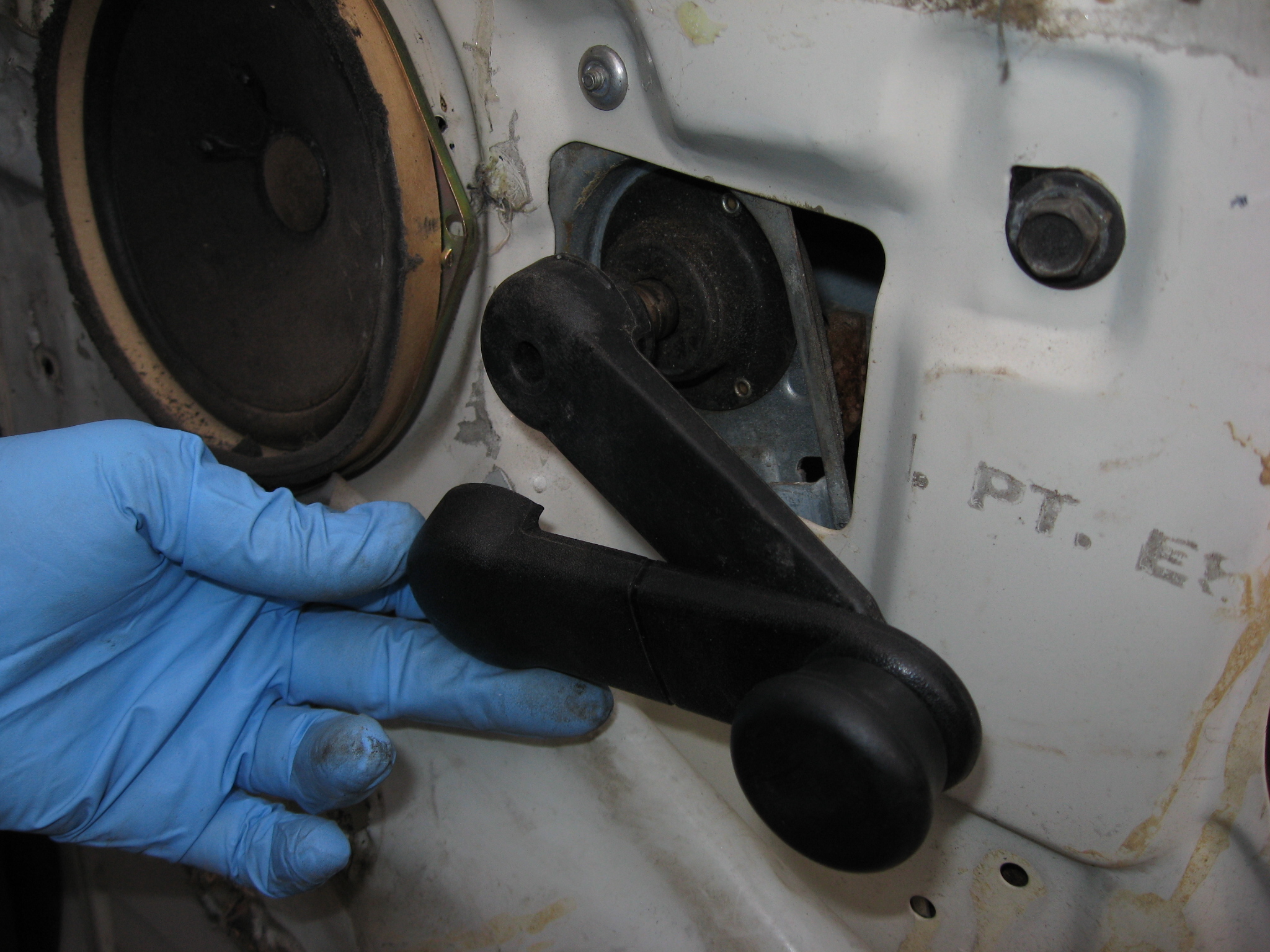

You'll have to remove the door panel upper section, which on my truck is about the upper 2/3. The lower section can stay on the door. The upper section has a couple of screws. One is at the upper corner next to the hinge. Another is in the handle. You'll have to remove the window handle. Pull back the plastic cover as shown below, then remove the screw. I think it was a Torx screw. There is a washer behind the handle. In this image I've already removed the door trim, show this is just to show the plastic cover on the handle. The tricky part of the door panel removal is in the next image.
